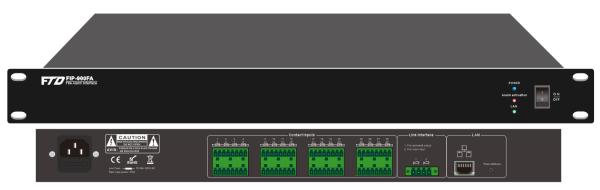

Ip System 32 Zone IP Network Fire Alarm Panel

Brand Name : FTD

Model Number : IP-900FA

Certification : CE, RoHS & ISO9001

Place of Origin : China

MOQ : 2

Price : Negotiate

Payment Terms : L/C,Western Union, T/T

Supply Ability : 10000PCS/month

Delivery Time : 5-8 work days

Packaging Details : Carton

Description : IP Network Fire Alarm Panel

Power Consumption : 15W

Network Protocol : TCP, UDP, ARP, ICMP, IGMP

S/N Ratio : ≥90dB

Audio Sampling : 8KHz-48KHz, 16 bits

Weight : 2.5kg

Dimension : 483(W)×256(D)×44(H)mm

Network Speed : 10/100Mbps

Contact Now

Ip System 32 Zone IP Network Fire Alarm Panel

Features

1.Interface between fire alarm and IP network audio system.
2.Automatically broadcast the pre-recorded voice alarm message once triggered by the closed contact from the fire alarm center.
3.Different zone trigger could be assigned with different voice messages.
4.The multiple pre-recorded voice messages are stored in the server or controller.
5.The fire alarm center send the fire alarm closed contact to this fire alarm panel, which will communicate with the server through the LAN RJ45 port, the server will give command to generate which pre-set voice message to be broadcasted to which speaker zone output.
6.One fire alarm panel support 32 speaker zones.
7.The fire alarm panel capable for both IP network PA and intercom system.
8.Each IP network audio system support more than 200 units working together for more than 6,400 speaker zones.
9.The fire alarm panel could be built-up over existing LAN/WAN network, non-dedicated network is needed.

Ip System 32 Zone IP Network Fire Alarm Panel

Specification

Model	IP-900FA
Description	IP Network Fire Alarm Panel
Power Supply	AC220V or 240V, 50-60Hz
Power Consumption	15W
Network Protocol	TCP, UDP, ARP, ICMP, IGMP
Network Speed	10/100Mbps
Audio Sampling	8KHz-48KHz, 16 bits
Transmission Rate	8Kbps to 320Kbps
S/N Ratio	≥90dB
Frequency Response	20Hz-20KHz
Data Delay	<30 milliseconds
Connector	One RJ45 port for LAN, 16 contact inputs and four contact outputs
Dimensions	483(W)×256(D)×44(H)mm
Weight	2.5kg

Exhibition

Ip System 32 Zone IP Network Fire Alarm Panel

Certifications

FAQ

1. Are you manufacturer?
Yes, we are public address system manufacturer located in Guangzhou, China.
Welcome to visit our factory.

2. Is sample order available? Is free sample available?
Firstly, sample order is available. Secondly, for new clients, we will return the sample fee after big order placed.

3. What's your warranty period?
Our warranty period is 12 months for speaker.

4. What's your payment terms?
We accept Western Union and TT. 30% deposit in advance, balance 70% before shipment.

5. Where is your main market?
Customers are mainly from Europe, Middle East and South Asia.

6. How many days do you need to prepare for the goods?
It takes 30 working days for large order.
